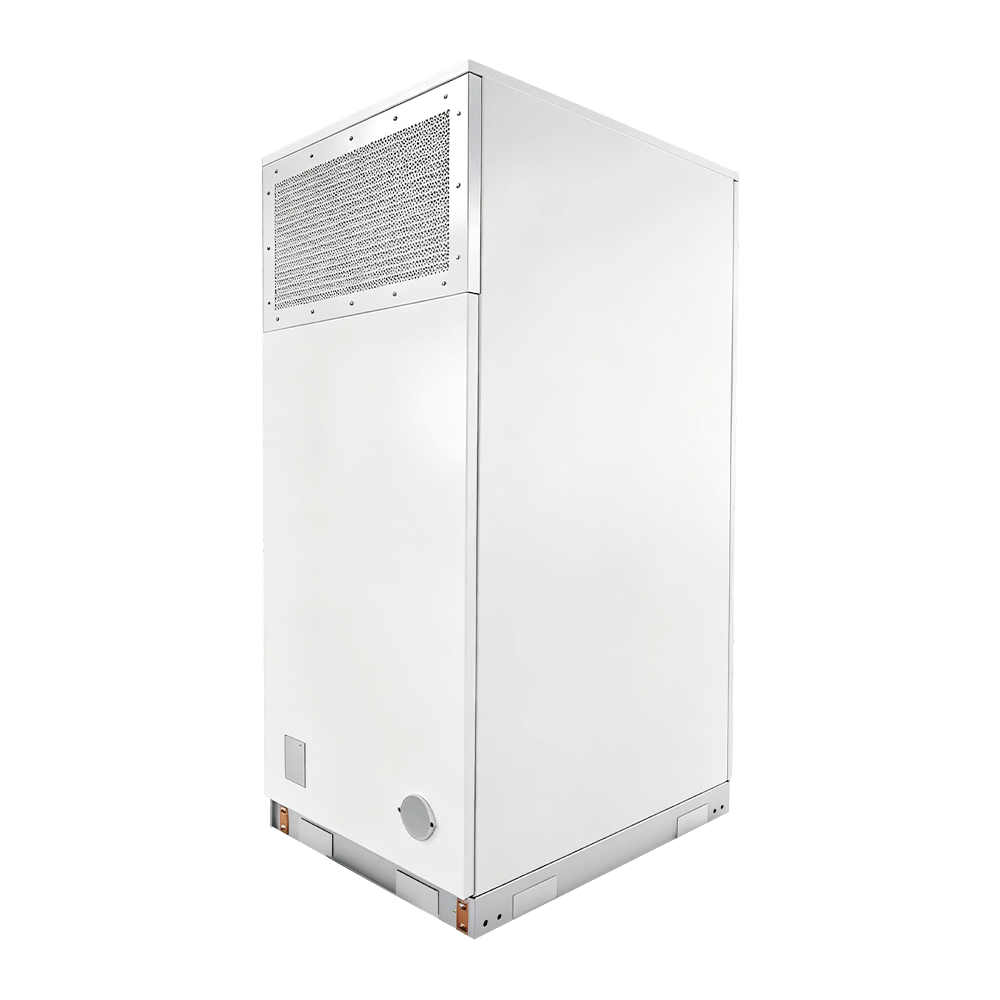

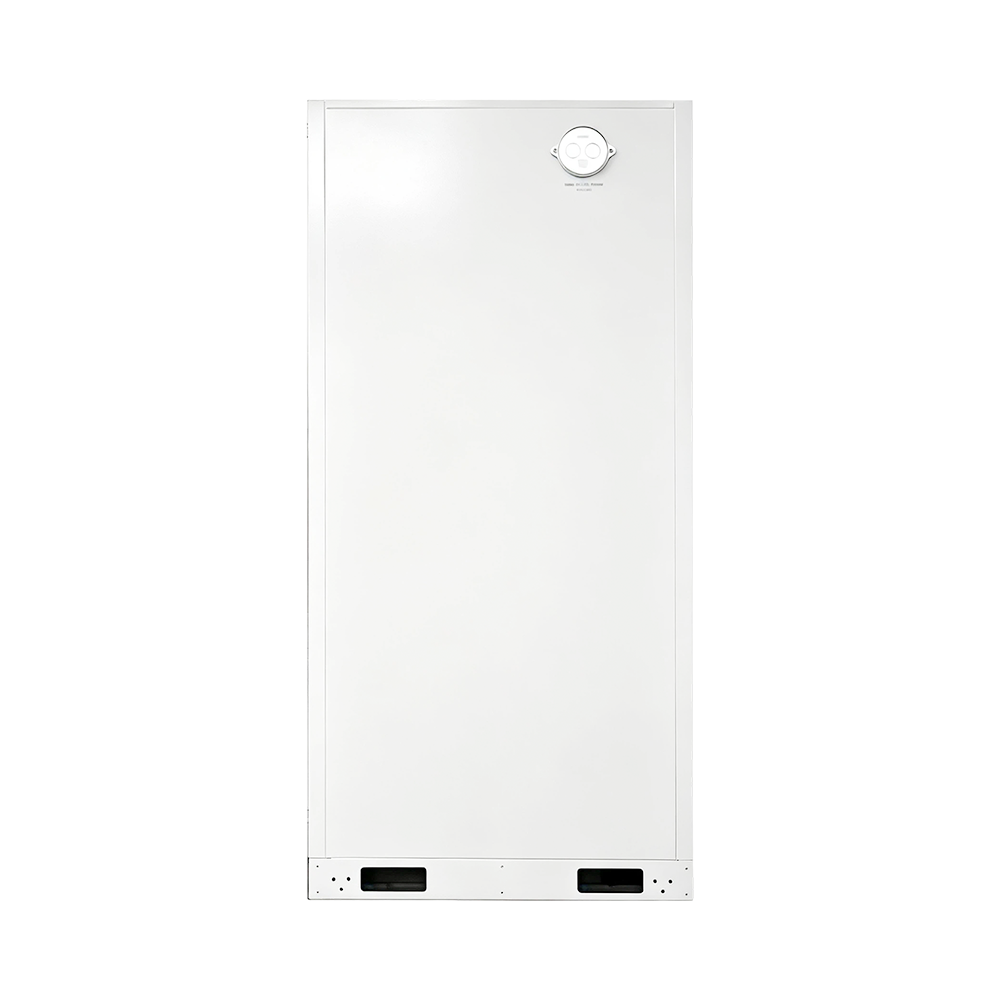

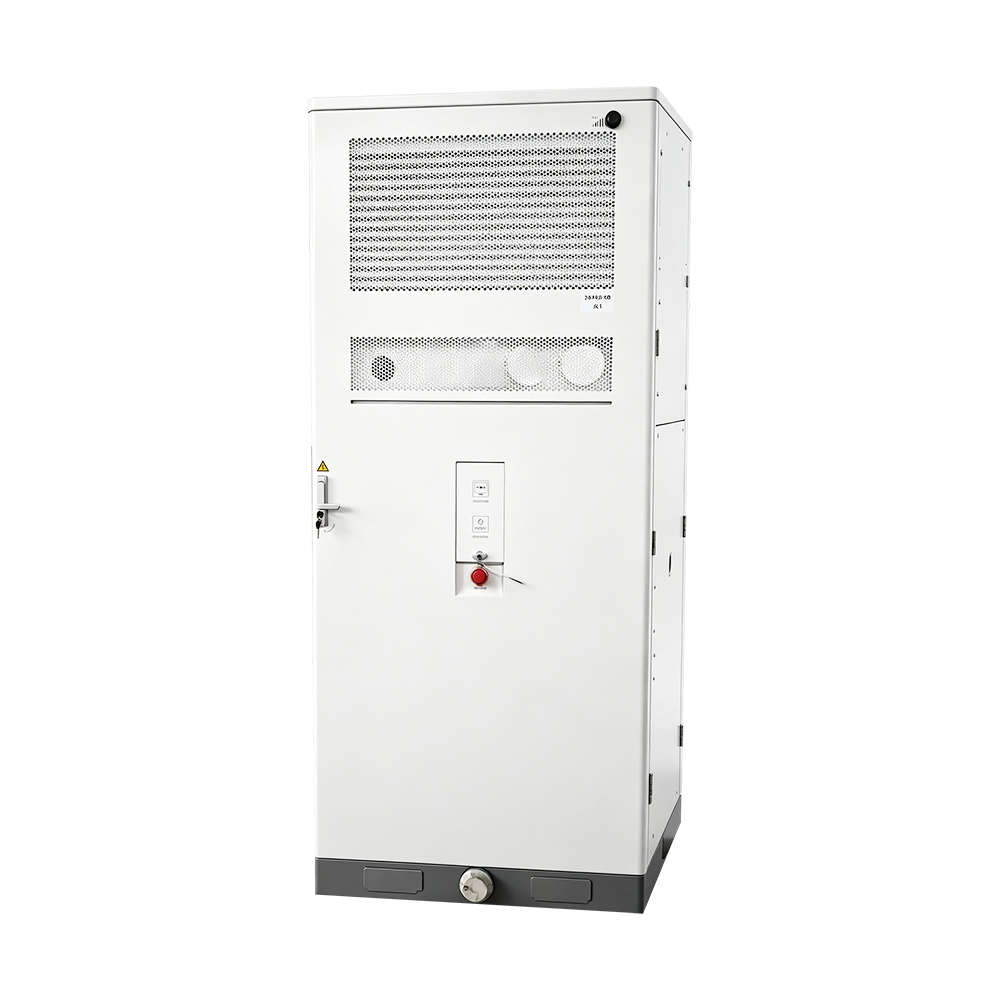

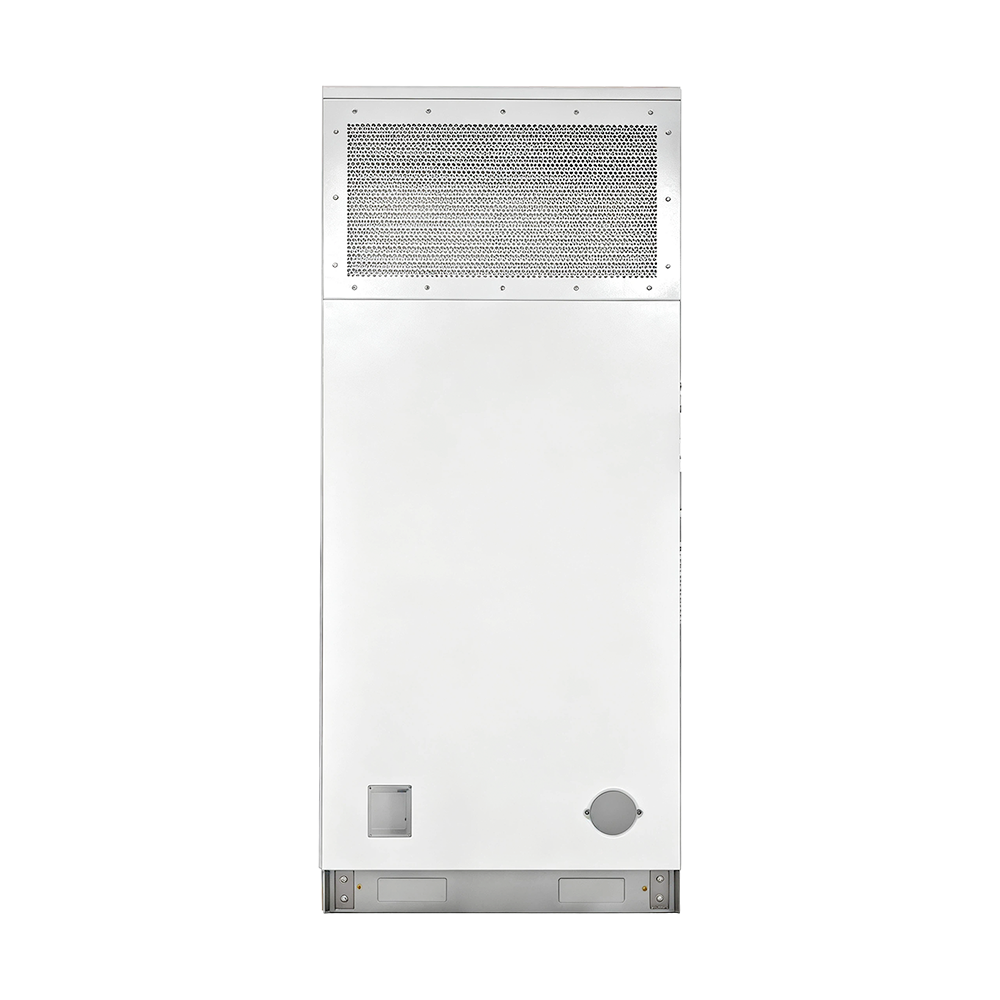

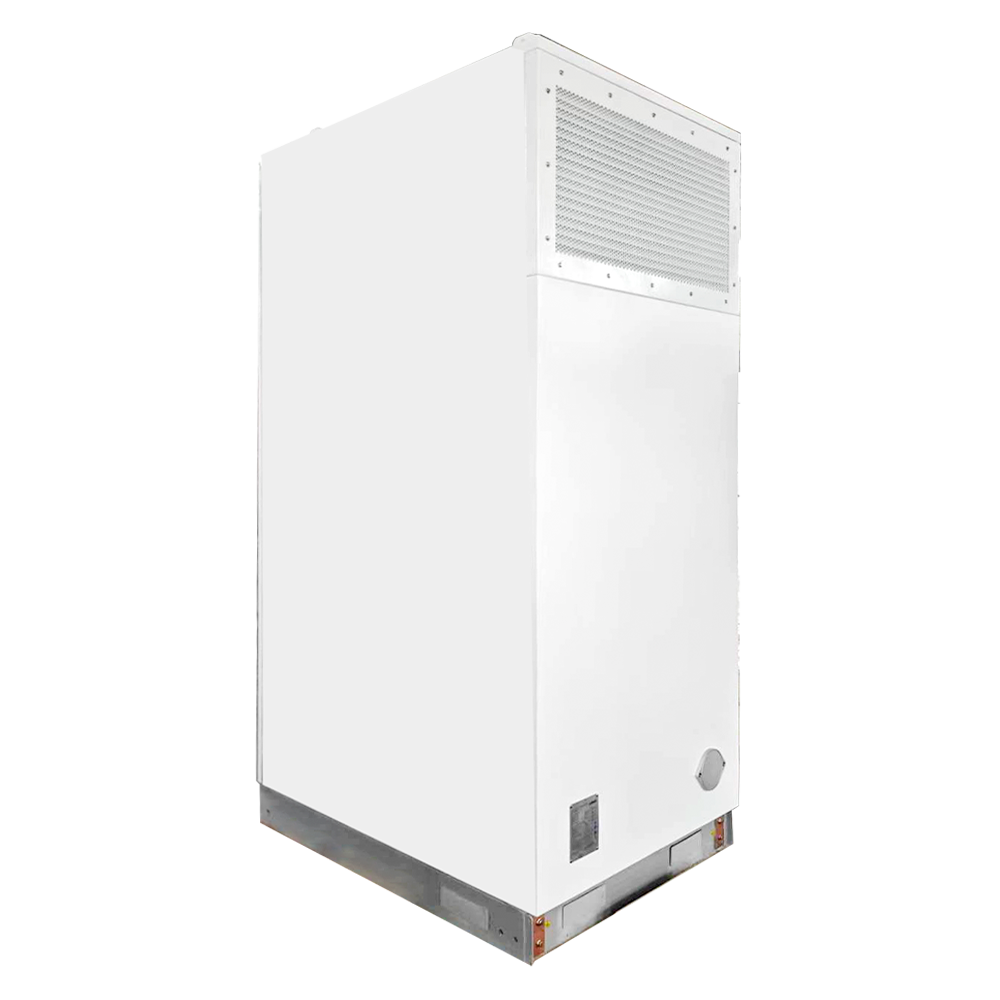

Hi-MO S L261X-DC 261kWh DC-Coupled Utility Battery Energy Storage System-LUZHIHANG Energy Technology (Kunshan) Co., Ltd.

Key Features

DC‑Side Integration for Solar Plus Storage Projects
The Hi‑MO S L261X‑DC adopts a DC‑side integration architecture designed for photovoltaic generation combined with battery storage.
Key advantages:

Direct connection between PV generation and battery storage
Suitable for new solar‑plus‑storage projects
Integrated system structure for renewable energy deployment
Designed for photovoltaic energy storage applications

This configuration is suitable for projects where solar generation and battery storage are planned as a combined system.

261.24kWh High‑Capacity Battery Storage System
The system uses high‑capacity LiFePO4 battery technology to provide reliable energy storage capacity.
Battery parameters:

Battery type: LiFePO4 (Lithium Iron Phosphate)
Cell capacity: 314Ah
Rated energy: 261.24kWh
Nominal voltage: 832V

The battery configuration supports renewable energy projects requiring stable and long‑duration energy storage capability.

Designed for Solar Energy Storage Applications
The DC‑coupled structure provides an integrated solution for photovoltaic projects requiring direct battery storage connection.
Applications include:

Solar power plants
PV plus storage projects
Renewable energy facilities
Distributed renewable energy systems

The system provides a Battery Energy Storage System solution for renewable energy developers and project integrators.

Liquid Cooling Battery Thermal Management
The battery system adopts liquid cooling technology to maintain stable operating conditions.
Cooling method:

Battery system: Liquid Cooling

The thermal management design supports reliable operation under different environmental conditions.

High Protection Design for Renewable Energy Projects
The system is designed for renewable energy applications requiring reliable environmental protection.
Key specifications:

Protection rating: IP55
Operating temperature: ‑30~55°C
Maximum operating altitude: ≤2000m

The protection design supports deployment across different renewable energy project environments.

Energy Storage Applications

Solar Plus Storage Projects
The Hi‑MO S L261X‑DC is designed for photovoltaic projects combining solar generation and battery storage.
Applications:

Solar farms with energy storage
Renewable energy generation projects
PV battery storage systems

New Renewable Energy Projects
The DC‑coupled structure is suitable for new renewable energy projects where photovoltaic generation and battery storage are developed together.
Applications:

Solar power facilities
Renewable energy parks
Integrated energy storage projects

Utility Battery Energy Storage Applications
As a Utility Battery Energy Storage System, the Hi‑MO S L261X‑DC provides high‑capacity storage capability for renewable energy projects.
Applications:

Utility renewable energy projects
Solar power generation facilities
Energy storage integration projects

Product Specifications

Parameter	Specification
Product Model	Hi‑MO S L261X‑DC
System Configuration	DC Coupled
System Type	DC‑Coupled Utility Battery Energy Storage System
Cell Technology	LiFePO4 (LFP)
Cell Capacity	314Ah
Rated Energy	261.24kWh
Nominal Voltage	832V
AC Auxiliary Power Voltage	230V
Rated Grid Frequency	50Hz
Cooling Method	Liquid Cooling
Weight	2752kg
Dimensions (W×D×H)	1065×1600×2350mm
Operating Altitude	≤2000m
Protection Rating	IP55
Operating Temperature	-30~55°C

Safety and Certifications

The Hi‑MO S L261X‑DC is designed with battery safety protection and international compliance requirements for renewable energy storage applications.

Certifications

IEC/UL 60730
IEC 62619
IEC 63056
EN/IEC 62477
IEC 62040
EN/IEC 61000
UN 38.3
UN 3480

Product Advantages

Optimized for Solar Plus Storage Deployment
The DC‑side integration architecture provides an integrated solution for new solar‑plus‑storage projects requiring direct connection between PV generation and battery storage.

Integrated Renewable Energy Storage Architecture
By combining photovoltaic generation and battery storage on the DC side, the system provides a practical configuration for renewable energy projects.

High‑Capacity Utility Battery Storage Solution
With 261.24kWh rated energy capacity and LFP battery technology, the system supports renewable energy projects requiring reliable battery storage capability.

Designed for EPC and Renewable Energy Projects
The system provides a Battery Energy Storage System solution for EPC contractors, renewable energy developers, and energy storage integrators.

Ordering Information

Item	Details
Product Model	Hi‑MO S L261X‑DC
System Configuration	DC Coupled
Rated Energy	261.24kWh
Battery Technology	LiFePO4
MOQ	Negotiable
Trade Terms	EXW / FOB / CIF / DDP / LC
Lead Time	Contact for current schedule

FAQ

Q: What type of projects is the Hi‑MO S L261X‑DC suitable for?

A: The system is suitable for solar‑plus‑storage projects, renewable energy facilities, and Battery Energy Storage System applications requiring integrated PV and battery deployment.

Q: Can this system be integrated with solar power generation projects?
A: Yes. The DC‑side architecture is designed for photovoltaic projects where solar generation and battery storage are planned as an integrated system.

Q: What is the difference between DC‑coupled and AC‑coupled energy storage systems?
A: DC‑coupled systems connect PV generation and battery storage on the DC side and are suitable for new solar‑plus‑storage projects. AC‑coupled systems connect through the AC side and are commonly used for retrofit and flexible integration applications.

Q: What battery technology does the system use?
A: The system uses LiFePO4 battery technology with 314Ah battery cells.

Q: Can LZH provide Battery Energy Storage Systems for EPC projects?
A: Yes. LZH supplies energy storage solutions for EPC contractors, renewable energy developers, and energy storage project partners.
