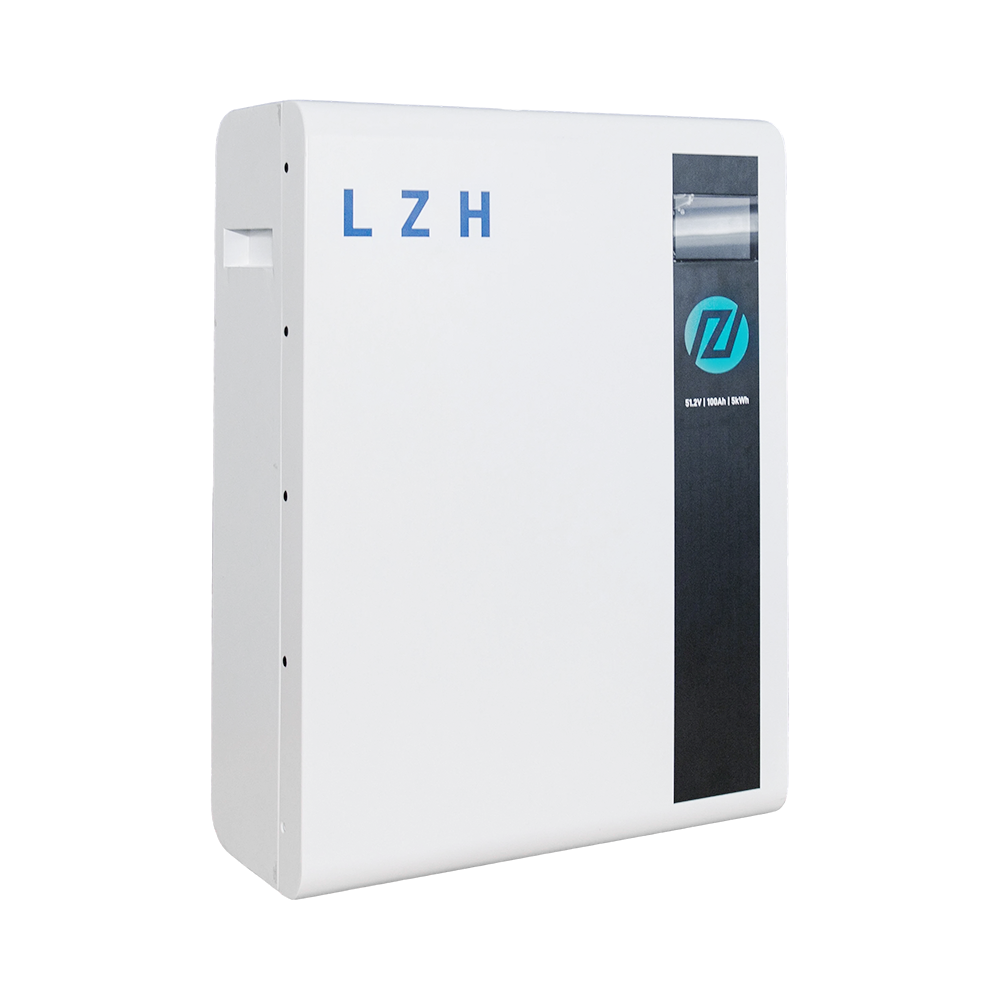

LZH 5.12kWh Wall-Mounted Residential Energy Storage System

Product Overview


The LZH 5.12kWh Wall‑Mounted Residential Energy Storage System provides a compact battery storage solution for apartments, small houses, and home solar applications.
Powered by LiFePO4 (Lithium Iron Phosphate) battery technology, this Energy Storage System provides 5.12kWh rated energy capacity, 51.2V nominal voltage, and up to 5.12kW charge and discharge power. With a cycle life of ≥6,000 cycles and 95% depth of discharge (DoD), it supports daily home energy storage applications.
The wall‑mounted structure allows installation in home environments with limited space. With IP54 protection and optional WiFi/4G communication, the system supports solar energy storage, backup power, and home energy management applications.
Get A Quote
View Product Catalog
PREV：LZH 16.07kWh Floor-Standing Home Energy Storage SystemNEXT：No next article
Key Features Energy Storage Applications Product Specifications Safety and Certifications Product Advantages Ordering Information FAQ

Key Features

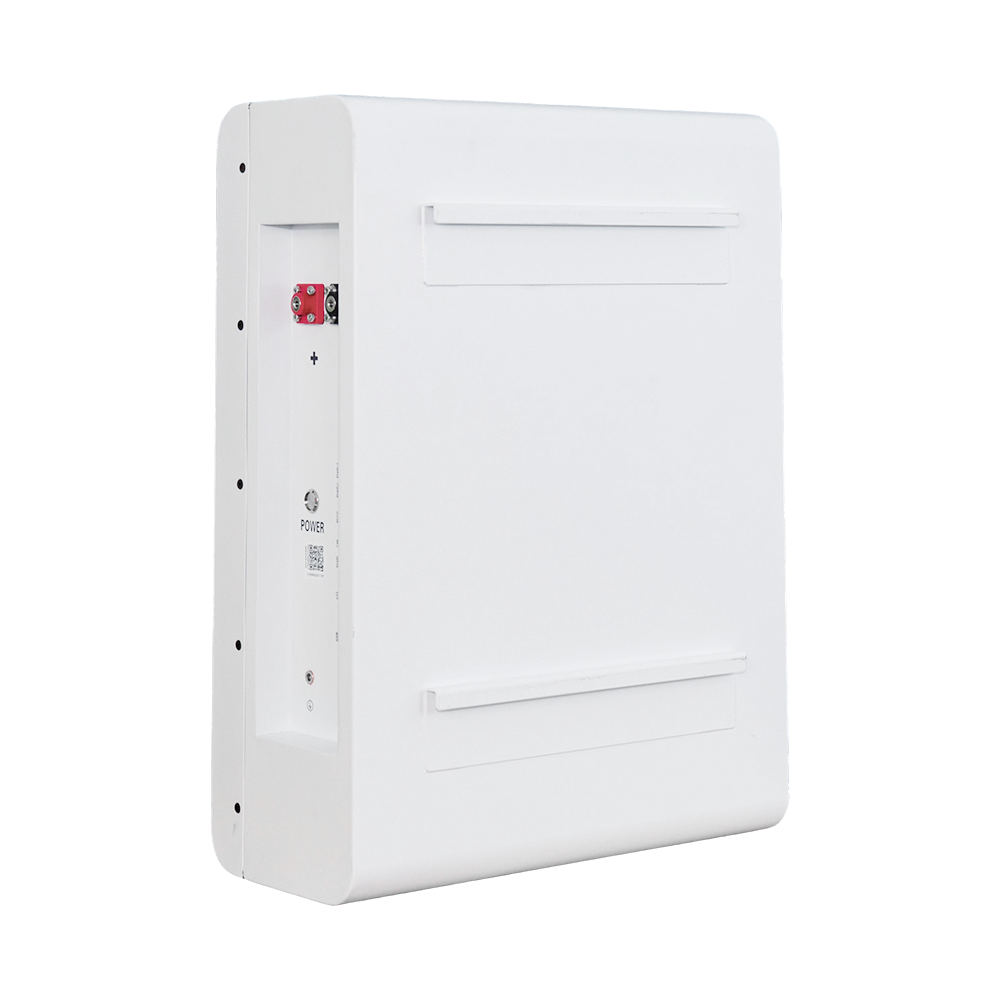

Wall‑Mounted Installation Design
The wall‑mounted structure is designed for home environments with limited installation space.
Key specifications:

  • Wall‑mounted / floor‑standing installation
  • Dimensions: 580×430×200mm
  • Net weight: 48.35kg
The compact structure is suitable for apartments, small houses, and home solar projects.


LiFePO₄ Battery Technology
The system uses lithium iron phosphate (LFP) battery technology with a cycle life of ≥6,000 cycles, suitable for home energy storage applications.
Battery specifications:

  • Battery type: LiFePO4 (Lithium Iron Phosphate)
  • Rated capacity: 100Ah
  • Rated energy: 5.12kWh
  • Depth of discharge (DoD): 95%


5.12kWh Energy Storage Capacity
The system provides 5.12kWh rated energy capacity for storing electricity from solar systems or the grid.
Main performance parameters:

  • Rated voltage: 51.2V
  • Voltage range: 43.2‑58.4V
  • Maximum charge/discharge current: 100A
  • Maximum charge/discharge power: 5.12kW
It is designed for daily household energy storage and backup power requirements.

Solar Energy Storage Application

The system stores excess solar energy generated during the daytime and supplies stored energy during nighttime or power interruptions.
Typical applications include:

  • Residential solar storage
  • Home backup power
  • Solar self‑consumption optimization
  • Home energy management


Remote Monitoring and Safety Protection

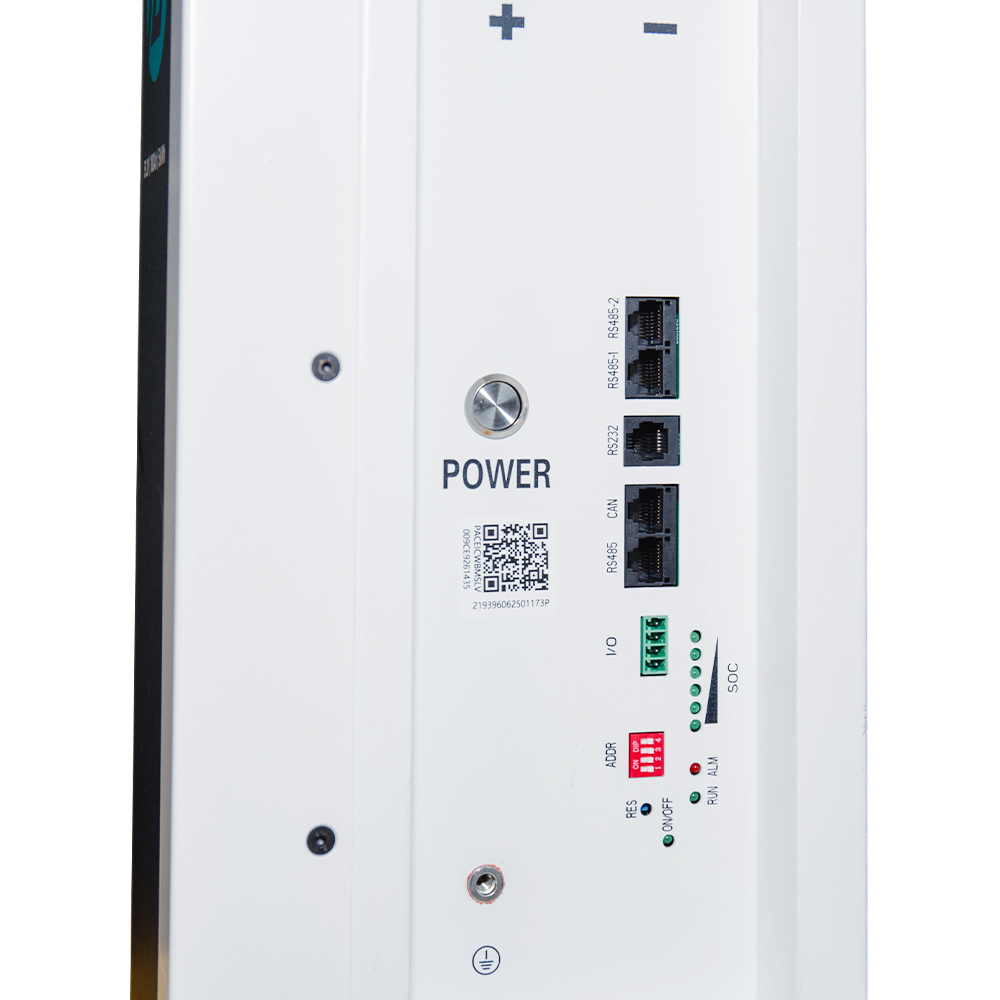

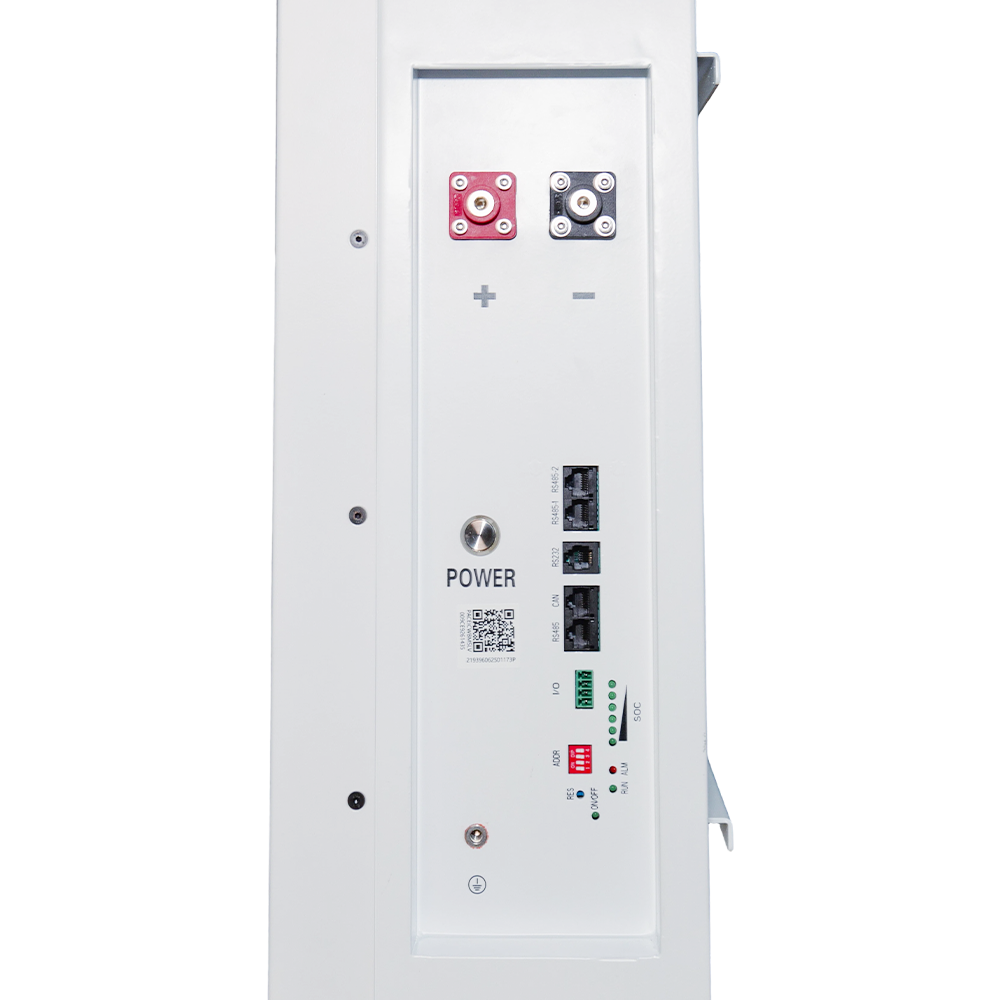

The system supports optional WiFi/4G communication for remote monitoring and system status management.
Integrated protection features include:

  • Flame‑retardant enclosure
  • Overheat warning
  • Automatic circuit breaker
  • Optional aerosol fire suppression


Energy Storage Applications

  • Home Solar Energy Storage
    The system is designed for households using solar power systems to store excess energy and improve solar energy utilization.
  • Apartment and Small Home Backup
    The wall‑mounted residential energy storage system is suitable for:
    • Apartments
    • Small houses
    • Home projects with limited installation space
    • Residential buildings with limited installation space
  • Areas with Unstable Grid Supply
    The system provides backup power support for regions with frequent power interruptions.

Product Specifications

Parameter Specification
Product Model LZH‑ESS‑512‑100
Battery Type LiFePO4 (Lithium Iron Phosphate)
Rated Capacity 100Ah
Rated Energy 5.12kWh
Rated Voltage 51.2V
Voltage Range 43.2‑58.4V
Max Charge/Discharge Current 100A
Max Charge/Discharge Power 5.12kW
Cycle Life ≥6,000 cycles
Depth of Discharge (DoD) 95%
Installation Wall‑mounted / Floor‑standing
Cooling Method Natural Air Cooling
Operating Temperature Charge: 0~45°C / Discharge: ‑10~60°C
Relative Humidity 5%‑95% RH (Non‑condensing)
Max Operating Altitude ≤4,000m
Protection Rating IP54
Communication WiFi / 4G Optional
Dimensions (W×H×D) 580×430×200mm
Weight NW: 48.35kg / GW: 49.85kg
Certifications CE, ISO9001, UN38.3

Safety and Certifications

The LZH 5.12kWh Wall‑Mounted Residential Energy Storage System includes integrated battery protection features and complies with international certification requirements.


Certifications

  • CE (LVD + EMC)
  • ISO 9001
  • UN38.3 Transport Safety
  • EMC Class B


Safety Features

  • Flame‑retardant enclosure
  • Overheat warning
  • Automatic circuit breaker
  • Optional aerosol fire suppression

Product Advantages

Residential Energy Storage Solution for Different Markets

The system supports residential solar storage and backup power applications across different regions with varying energy requirements.


Compact Installation Structure
The wall‑mounted design and compact dimensions allow installation in home projects where available space is limited.


Supply Capability from Energy Storage Battery Manufacturer
LZH provides home energy storage solutions for distributors, installers, and energy solution providers.
As an energy storage battery manufacturer, LZH supports bulk supply and project cooperation for global customers.

Ordering Information

Item Details
Model LZH‑ESS‑512‑100
MOQ Negotiable (Sample orders available)
Trade Terms EXW / FOB / CIF / DDP / LC
Lead Time Contact for current schedule
Warranty 5 years standard

FAQ

Q: What certifications are available for this residential energy storage system?
A: The system is certified with CE (LVD + EMC), ISO 9001, UN38.3 Transport Safety, and EMC Class B requirements.

Q: What battery technology is used in this energy storage system?
A: The system uses LiFePO4 (Lithium Iron Phosphate) battery technology with a cycle life of ≥6,000 cycles.

Q: What are the main energy storage applications of this system?
A: The system is designed for residential solar storage, backup power, and household energy management applications.

Q: What is the warranty period for this residential energy storage system?
A: The standard warranty period is 5 years.

Q: Can this system support OEM or bulk supply requirements?
A: LZH provides bulk supply and project cooperation for distributors, installers, and energy solution providers.
