LZH 16.07kWh Floor-Standing Home Energy Storage System-LUZHIHANG Energy Technology (Kunshan) Co., Ltd.

Key Features

314Ah LiFePO4 Battery Cell Design
The system uses high‑capacity 314Ah lithium iron phosphate battery cells to provide increased energy storage capacity for larger residential power requirements.
Battery specifications:

Battery type: LiFePO4 (Lithium Iron Phosphate)
Rated capacity: 314Ah
Rated energy: 16.07kWh
Rated voltage: 51.2V
Depth of discharge (DoD): 95%

The high‑capacity battery configuration supports longer energy storage duration for residential applications.

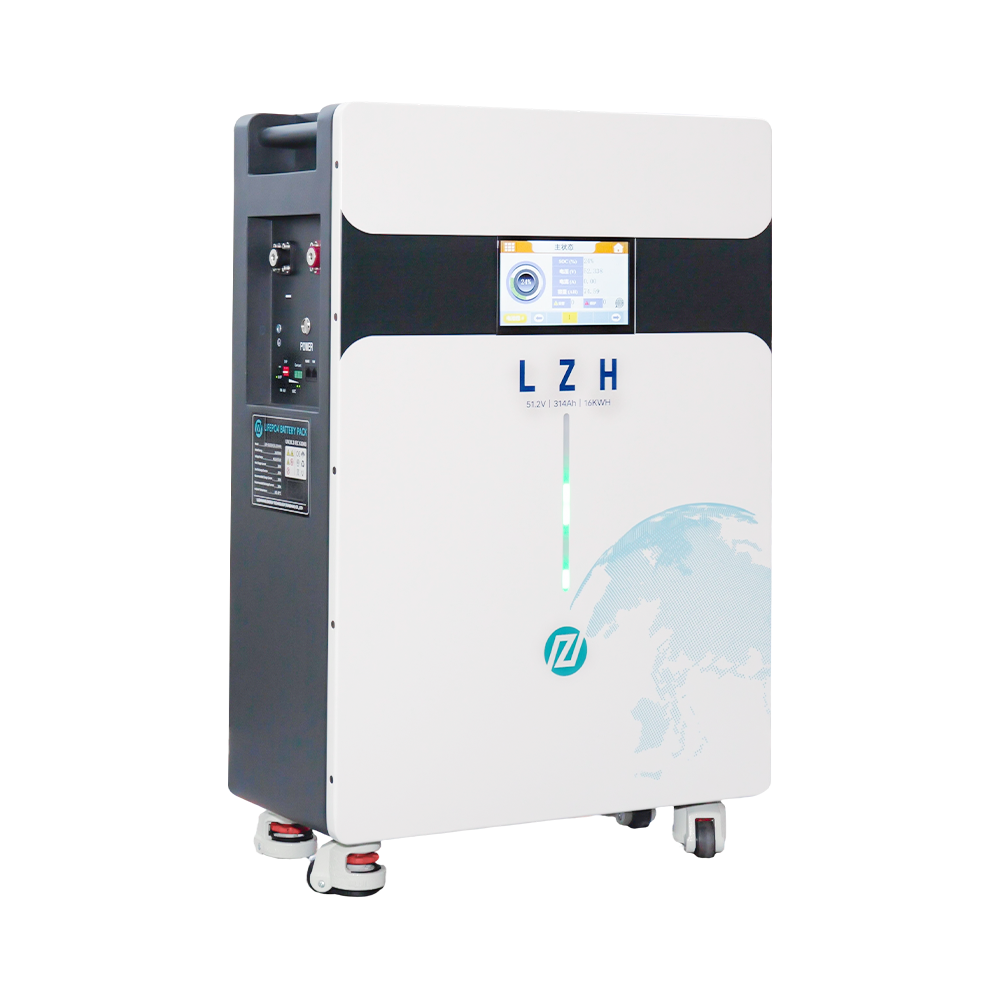

Floor‑Standing Installation Structure
The floor‑standing design provides a stable installation method for higher‑capacity residential energy storage systems.
Installation specifications:

Installation: Floor‑standing (vertical)
Dimensions: 800×515×260mm
Weight: 121.1kg

The structure is suitable for villas, large homes, and indoor residential energy storage installations.

7.68kW Power Output Capability
The system supports higher power demand compared with compact residential battery systems.
Main performance parameters:

Maximum charge/discharge current: 150A
Maximum charge/discharge power: 7.68kW

It supports multiple household loads and higher electricity demand scenarios.

Residential Solar Energy Storage Technology
The system uses LiFePO4 battery technology for daily charging and discharging applications, helping households store solar energy and use stored power when required.
Typical applications include:

Solar self‑consumption
Evening energy usage
Backup power during grid interruptions

Remote Monitoring and Safety Protection
The system supports optional WiFi/4G communication for remote monitoring and system management.
Integrated protection features include:

Flame‑retardant enclosure
Overheat warning
Automatic circuit breaker
Optional aerosol fire suppression

Energy Storage Applications

Large Home and Villa Energy Storage
The system is designed for larger residential properties requiring higher energy capacity.
Typical applications:

Villas
Large houses
Multi‑load residential systems

Residential Solar Battery Storage
The system stores excess solar power generated during the daytime and provides stored energy for later use.
Applications include:

Solar self‑consumption optimization
Reduced dependence on grid power
Residential energy management

Residential and Small Business Backup
With 16.07kWh energy capacity and 7.68kW power output, the system can support residential and small business backup applications.
Suitable scenarios include:

Small offices
Shops
Home‑based businesses

Areas with Unstable Grid Supply
The system provides backup power support for regions with frequent power interruptions.

Product Specifications

Parameter	Specification
Product Model	LZH‑ESS‑512‑314
Battery Type	LiFePO4 (Lithium Iron Phosphate)
Rated Capacity	314Ah
Rated Energy	16.07kWh
Rated Voltage	51.2V
Voltage Range	43.2‑58.4V
Max Charge/Discharge Current	150A
Max Charge/Discharge Power	7.68kW
Cycle Life	≥6,000 cycles
Depth of Discharge (DoD)	95%
Installation	Floor‑standing (Vertical)
Cooling Method	Natural Air Cooling
Operating Temperature	Charge: 0~45°C / Discharge: ‑10~60°C
Relative Humidity	5%‑95% RH (Non‑condensing)
Max Operating Altitude	≤4,000m
Protection Rating	IP54
Communication	WiFi / 4G Optional
Dimensions (W×H×D)	800×515×260mm
Weight	NW: 121.1kg / GW: 136kg
Certifications	CE, ISO9001, UN38.3

Safety and Certifications

The LZH 16.07kWh Floor‑Standing Home Energy Storage System integrates battery protection functions and complies with international certification requirements.

Certifications

CE (LVD + EMC)
ISO 9001
UN38.3 Transport Safety
EMC Class B

Safety Features

Flame‑retardant enclosure
Overheat warning
Automatic circuit breaker
Optional aerosol fire suppression

Product Advantages

Higher Energy Capacity for Larger Applications
With 16.07kWh rated energy capacity, the system provides a higher‑capacity option for residential projects requiring longer backup duration.

Suitable for Professional Installation Projects
The floor‑standing structure provides a practical installation solution for distributors and installers serving villas, large homes, and residential energy storage projects.

Supply Capability from Energy Storage Battery Manufacturer
LZH provides residential energy storage solutions for distributors, installers, and energy solution providers.
As an energy storage battery manufacturer, LZH supports bulk supply and project cooperation for global customers.

Ordering Information

Item	Details
Model	LZH‑ESS‑512‑314
MOQ	Negotiable (Sample orders available)
Trade Terms	EXW / FOB / CIF / DDP / LC
Lead Time	Contact for current schedule
Warranty	5 years standard

FAQ

Q: What applications is this 16.07kWh energy storage system suitable for?

A: The system is designed for large homes, villas, residential solar storage, and small business backup applications requiring higher energy capacity.

Q: What is the advantage of a floor‑standing residential energy storage system?

A: The floor‑standing design provides a stable installation option for larger battery systems with higher energy capacity requirements.

Q: What battery cells are used in this energy storage system?

A: The system uses 314Ah LiFePO4 (Lithium Iron Phosphate) battery cells.

Q: What certifications are available for this energy storage system?

A: The system complies with CE (LVD + EMC), ISO 9001, UN38.3 Transport Safety, and EMC Class B requirements.

Q: What is the warranty period for this residential energy storage system?

A: The standard warranty period is 5 years.

Q: Can LZH provide bulk supply for distributors and installers?

A: Yes. LZH provides bulk supply and project cooperation for distributors, installers, and energy solution providers.
