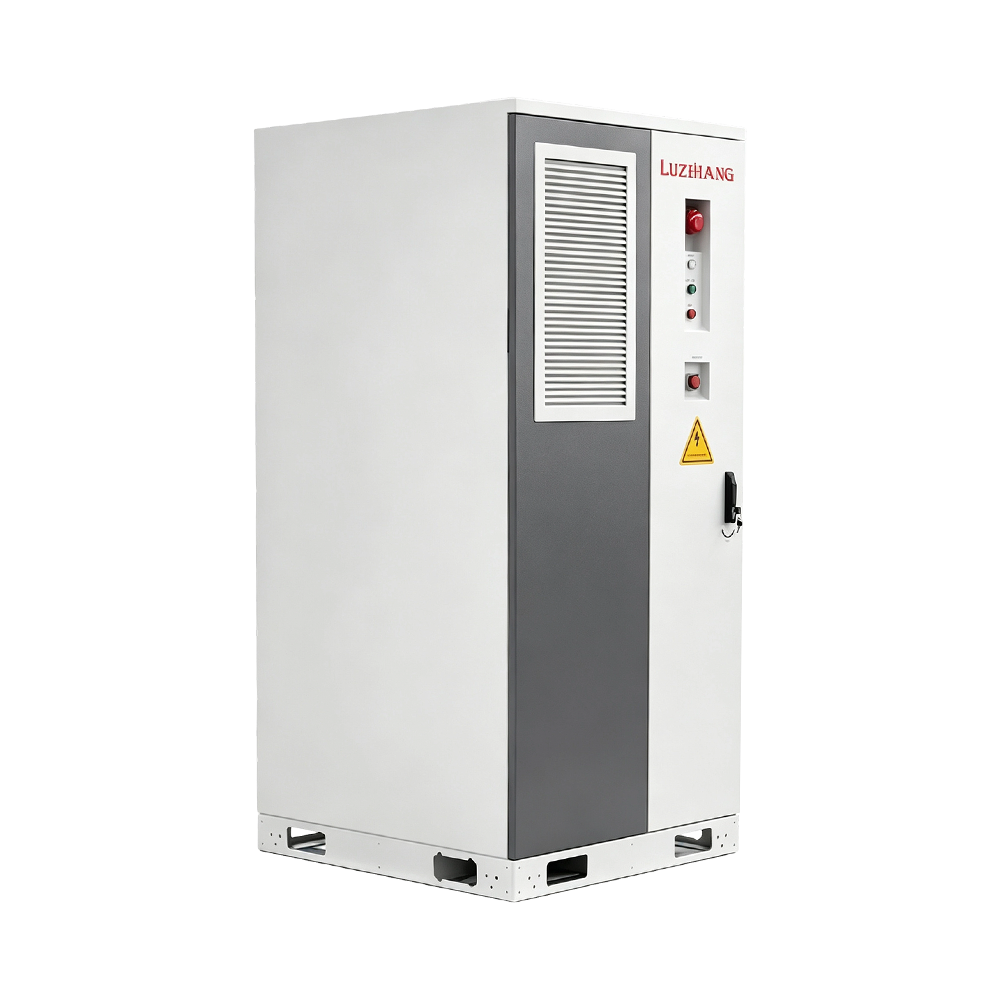

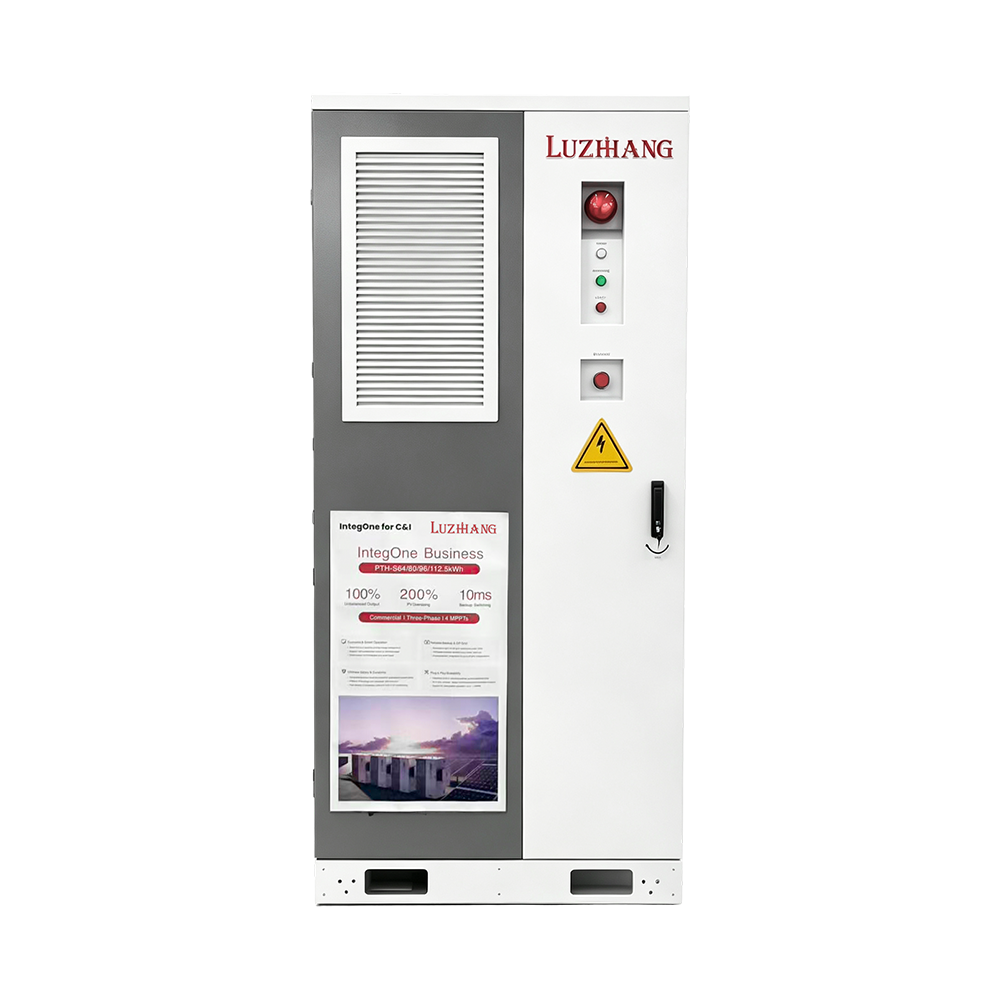

IntegOne All-in-One C&I Energy Storage System-LUZHIHANG Energy Technology (Kunshan) Co., Ltd.

Key Features

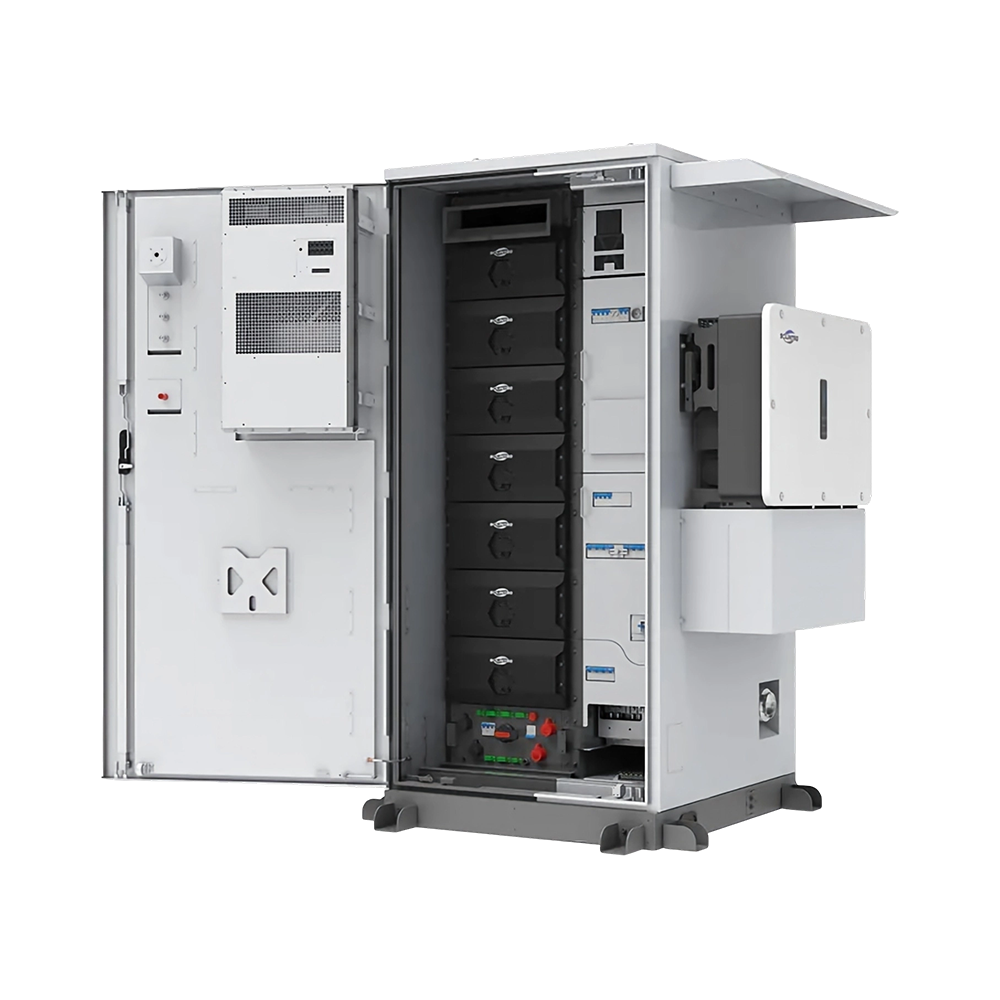

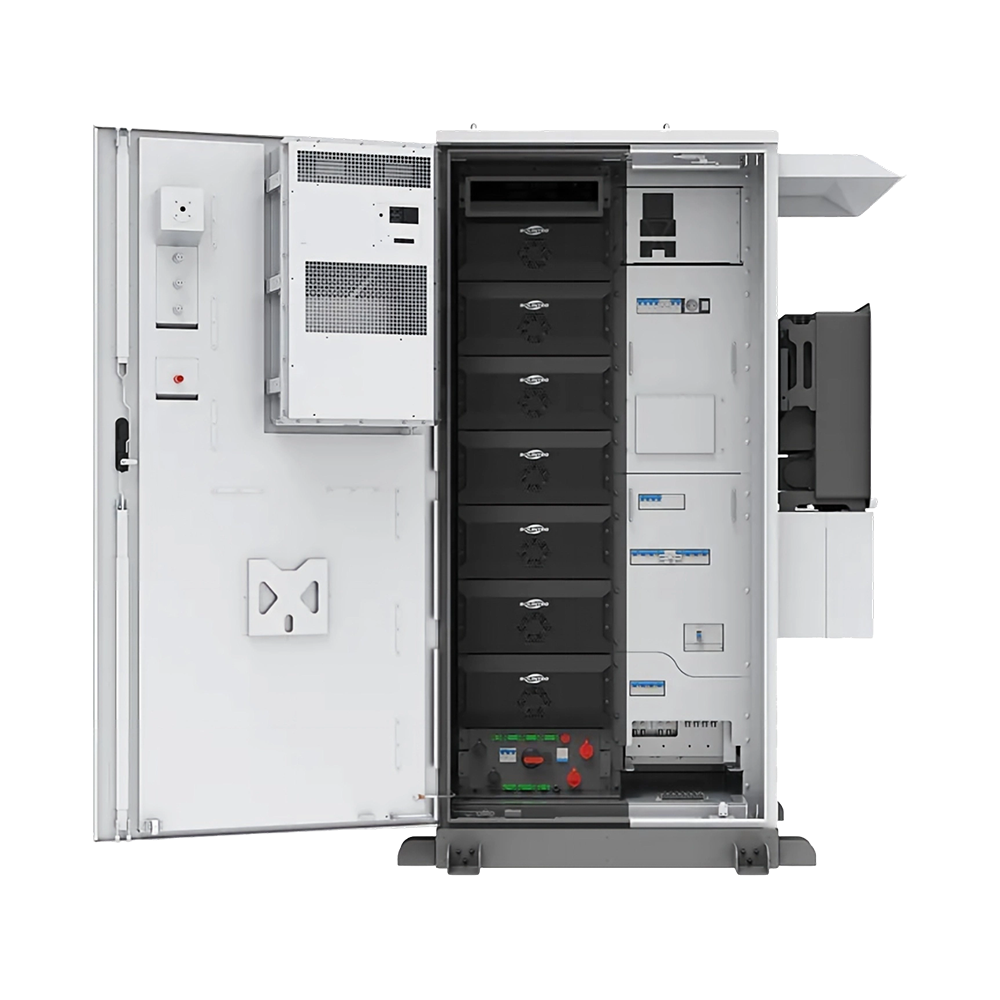

Integrated All‑in‑One Energy Storage Design
The IntegOne system combines major energy storage components into one cabinet, providing a simplified solution for commercial and industrial projects.
Integrated components include:

Battery storage system
Hybrid inverter
Energy conversion system
Communication interfaces

The integrated design helps reduce external system integration work and improves project deployment efficiency.

Flexible Capacity and Power Configuration
The system supports multiple battery capacities and inverter power options to meet different C&I energy storage requirements.

Battery Models

Battery Model	Energy Capacity
E2BR‑S64K‑C	64kWh
E2BR‑S80K‑C	80kWh
E2BR‑S96K‑C	96kWh
E2BR‑S112‑C	112kWh

Inverter Power Options

25kW
29.9kW
30kW
40kW
50kW

The flexible configuration allows EPC companies, distributors, and project developers to select suitable system sizes for different applications.

PV Integration for Renewable Energy Applications
The IntegOne C&I Energy Storage System supports photovoltaic integration for solar energy storage projects.
PV input specifications:

Maximum DC input voltage: 1000V
MPPT voltage range: 200‑950V
Number of MPPT trackers: 4
Maximum input current: 40A × 4

The system stores renewable energy generated from PV systems and provides stored energy when required.

Grid‑Connected and Backup Power Capability
The system supports both grid‑connected operation and backup power applications.
Grid‑side specifications:

Rated output power: 25kW‑50kW
Maximum output apparent power: 25kVA‑50kVA
Rated AC voltage: 3L/N/PE; 220/380V; 230/400V; 240/415V
Frequency: 50/60Hz

Backup specifications:

On/off‑grid switching time: <10ms
Backup output power: 25kW‑50kW

The fast switching capability supports reliable power supply for important commercial and industrial loads.

Diesel Generator Compatibility
The system supports diesel generator connection for hybrid energy applications.
Generator‑side specifications:

Maximum input apparent power: 30kVA‑60kVA
Maximum battery charging power: 25kW‑50kW

This allows flexible integration between renewable energy, battery storage, grid power, and generator systems.

Protection and Environmental Adaptability
Designed for commercial and industrial environments requiring enhanced protection.
Protection features:

Cabinet protection rating: IP55
Inverter protection rating: IP66
Anti‑corrosion grade: C4 (C5 optional)
Operating temperature: ‑30~50°C
Maximum altitude: ≤3000m

Cooling system:

Cabinet: Air conditioner cooling
Inverter: Smart fan cooling

Energy Storage Applications

Commercial Building Energy Storage
The system provides commercial energy storage solutions for facilities requiring flexible power management and backup capability.
Applications:

Office buildings
Commercial facilities
Retail buildings

Industrial Facility Energy Storage
The system supports industrial applications requiring stable energy supply and flexible energy utilization.
Applications:

Factories
Manufacturing facilities
Workshops

PV Plus Storage Projects
The system supports solar PV integration to improve renewable energy utilization.
Applications:

Commercial solar projects
Distributed PV systems
Renewable energy facilities

Hybrid Energy Systems
With support for PV, grid power, battery storage, and diesel generators, the system provides a flexible solution for hybrid energy projects.
Applications:

Microgrid systems
Remote energy projects
Backup power applications

Product Specifications

Parameter	Specification
Product Series	IntegOne All‑in‑One C&I Energy Storage System
Battery Capacity Options	64kWh / 80kWh / 96kWh / 112kWh
Inverter Power Options	25kW / 29.9kW / 30kW / 40kW / 50kW
PV Max Input Voltage	1000V
MPPT Voltage Range	200‑950V
Number of MPPT Trackers	4
Max Input Current	40A × 4
Rated AC Voltage	3L/N/PE; 220/380V; 230/400V; 240/415V
Rated Frequency	50/60Hz
Max Efficiency	97.80%
European Efficiency	97.20%
Battery Charge/Discharge Efficiency	97.50%
Backup Switching Time	<10ms
Cabinet Protection	IP55
Inverter Protection	IP66
Anti‑corrosion Grade	C4 (C5 Optional)
Operating Temperature	‑30~50°C
Cooling Method	Cabinet Air Conditioner / Inverter Smart Fan
Communication	CAN, RS485, WiFi/LAN

Safety and Certifications

The IntegOne C&I Energy Storage System is designed with integrated protection features for commercial and industrial applications.

Safety Features

Enhanced cabinet protection
Temperature monitoring
Electrical protection functions
Optional fire protection system

Product Advantages

Simplified Deployment for C&I Projects
The integrated cabinet design combines key energy storage components into one system, reducing installation complexity for commercial and industrial projects.

Flexible System Configuration
Multiple battery capacities and inverter power options allow the system to adapt to different project sizes and energy requirements.

Supports Renewable and Hybrid Energy Integration
The system supports integration with:

Solar PV systems
Grid power
Diesel generators
Battery storage

Providing flexible energy storage solutions for different commercial and industrial applications.

Suitable for Distributor and EPC Project Deployment
With flexible configurations, communication interfaces, and industrial protection design, the system provides a practical solution for distributors, EPC companies, and energy solution providers.

Ordering Information

Item	Details
Product Series	IntegOne All‑in‑One C&I Energy Storage System
Battery Models	E2BR‑S64K‑C / E2BR‑S80K‑C / E2BR‑S96K‑C / E2BR‑S112‑C
Inverter Options	25kW / 29.9kW / 30kW / 40kW / 50kW
MOQ	Negotiable
Trade Terms	EXW / FOB / CIF / DDP / LC
Lead Time	Contact for current schedule

FAQ

Q: What is an All‑in‑One C&I Energy Storage System?

A: An All‑in‑One C&I Energy Storage System integrates battery storage, inverter, and supporting electrical components into one cabinet for commercial and industrial applications.

Q: What capacity options are available for the IntegOne system?
A: The system supports 64kWh, 80kWh, 96kWh, and 112kWh battery capacity configurations.

Q: Is this system suitable for PV plus storage projects?
A: Yes. The system supports PV integration with up to 1000V DC input voltage and four MPPT trackers.

Q: Can the system provide backup power during grid interruptions?

A: Yes. The system supports backup operation with less than 10ms on/off‑grid switching time.

Q: Can the system connect with diesel generators?

A: Yes. The system supports generator‑side connection for hybrid energy applications.

Q: What communication interfaces are supported?

A: The system supports CAN, RS485, and WiFi/LAN communication interfaces.

Q: Can LZH supply systems for EPC projects and distributors?

A: Yes. LZH provides C&I Energy Storage Systems for distributors, EPC companies, and global energy solution partners.
